Quick Start

This guide will get HERITRACE running on your local machine in just a few steps.

Prerequisites

• Docker and Docker Compose installed
• Git for cloning the repository
• Modern web browser

1. Clone the Repository

git clone https://github.com/opencitations/heritrace.git

cd heritrace

2. Configure the Application

Copy the example configuration file:

cp config.example.py config.py

Required: Configure ORCID authentication (mandatory for the application to work):

1. Create an ORCID account at orcid.org if you don’t have one

2. Get ORCID credentials at ORCID Developer Tools:

   • Create a new application
   • Set redirect URI to: https://127.0.0.1:5000/auth/callback
   • Note your Client ID and Client Secret

3. Edit config.py with your ORCID credentials:

# Required ORCID configuration
ORCID_CLIENT_ID = 'APP-XXXXXXXXXX'  # From ORCID registration
ORCID_CLIENT_SECRET = 'xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx'  # From ORCID
ORCID_WHITELIST = ['0000-0000-0000-0000']  # Your ORCID ID

# Optional: Customize display (can be changed later)
APP_TITLE = 'Your HERITRACE Instance'
# Optional for startup, but important for security
SECRET_KEY = 'your-secure-secret-key-here'

3. Start the Databases

Note

Make sure Docker Engine (Linux/MacOS) or Docker Desktop (Windows) is running before executing these commands.

Linux/MacOS

./start-databases.sh

Windows

.\Start-Databases.ps1

This starts two Virtuoso database instances:

• Dataset database on port 8999
• Provenance database on port 8998

4. Launch HERITRACE

Development Mode

docker compose -f docker-compose.dev.yaml up --build

Production Mode

docker compose up

Note

This automatically starts all required services including:

• HERITRACE web application (port 5000)
• Redis for resource locking and counters (port 6379)
• All dependencies are managed automatically by Docker Compose

5. Access the Application

Open your browser and navigate to:

https://127.0.0.1:5000

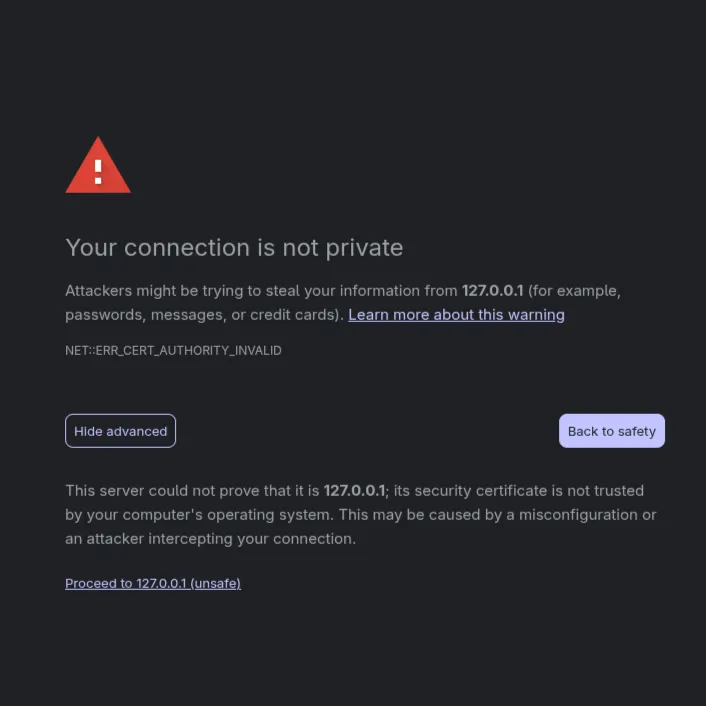

SSL Certificate Warning

Development Mode: HERITRACE uses a self-signed SSL certificate, so your browser will show a security warning. Click “Advanced” and “Proceed to 127.0.0.1:5000 (unsafe)” to continue.

The following image shows an example of this warning:

Production Mode: Requires a valid SSL certificate and public domain for ORCID authentication to work, as ORCID only accepts HTTPS callbacks. Without these, ORCID will reject authentication requests. For initial testing, use development mode.

Pre-configured Data Model

HERITRACE comes preloaded with validation and display rules based on a customized version of the OpenCitations Data Model (OCDM):

• SHACL Schema (resources/shacl.ttl): Defines the data model, classes, and properties.
• YAML Display Rules (resources/display_rules.yaml): Configure how entities appear in the interface

These rules can be fully customized for your specific needs while maintaining semantic integrity.

What’s Next?

Now that HERITRACE is running, you can:

1. Explore the Interface: Navigate through the metadata management features with the preconfigured data model
2. Configure Schemas: Customize the SHACL schema for your data model
3. Set Display Rules: Modify the YAML display rules for your interface
4. Advanced Configuration: Review additional settings for production use

Stopping the Application

When you’re done, stop the services:

Stop Application

# Press Ctrl+C in the terminal running docker compose
# Or run:
docker compose down

Stop Databases

Linux/MacOS:

./stop-databases.sh

Windows:

.\Stop-Databases.ps1

Troubleshooting

Port Already in Use

If you get port conflicts, check if other services are running on the required ports:

Linux

# Modern Linux (ss command - usually preinstalled)
ss -tulpn | grep -E ':(5000|6379|8998|8999)\s'

macOS

netstat -an | grep -E ':(5000|6379|8998|8999)\s'

Windows

# Check ports using netstat
netstat -ano | findstr ":5000 :6379 :8998 :8999"

# Or using PowerShell
Get-NetTCPConnection | Where-Object {$_.LocalPort -in 5000,6379,8998,8999}

Need Help?

• Review configuration options for advanced setup
• Use docker compose logs to check application logs for specific errors
• Visit the GitHub repository for issues and support
